MP120UD – 100V Line 120W Mini Mixing Amplifier

The MP120UD Mini Mixing Amplifier is a compact and powerful audio solution featuring 2-zone independent volume control, USB/Bluetooth/FM support, and a dedicated mic input. With adjustable treble, bass, and master tone controls, plus an informative LCD screen and remote control, it’s perfect for enhancing sound in schools, gyms, and events. Compatible with low impedance and 100V line speakers, it delivers versatile performance for any setting.

Key Features

  1. 2 Zone Independent Volume Control:
    Allows you to adjust the volume for two separate zones independently, giving you more control over sound distribution in different areas.
  2. Support USB/Bluetooth & FM Signals:
    Can connect to various audio sources, including USB devices, Bluetooth-enabled devices, and FM radio, providing a variety of listening options.
  3. Mic Input with Dedicated Volume Control:
    Includes a microphone input, ideal for events or presentations, with individual volume control for precise sound adjustment.
  4. Treble, Bass, and Master Tone Control:
    Full control over audio frequencies to enhance the sound quality, allowing you to adjust treble, bass, and overall master volume levels.
  5. Informative LCD Screen Display:
    The built-in LCD screen displays information such as input sources, volume levels, and settings, making operation easy and intuitive.
  6. Infrared Remote Control:
    Offers remote control functionality for convenient operation from a distance.
  7. Low Impedance / 100V Line Speaker Output:
    Compatible with both low impedance and 100V line speakers, allowing for flexible speaker setups in various environments.

Connectivity

  • Bluetooth:
    Enables wireless connection to Bluetooth-enabled devices such as smartphones, tablets, or computers, streamlining audio input.
  • USB Input:
    A USB port allows for direct playback of digital files from flash drives, MP3 players, or other USB devices.
  • FM Radio:
    Built-in FM tuner provides easy access to local radio stations.
  • Microphone Input:
    Dedicated mic input with volume control for PA systems, announcements, or live events.

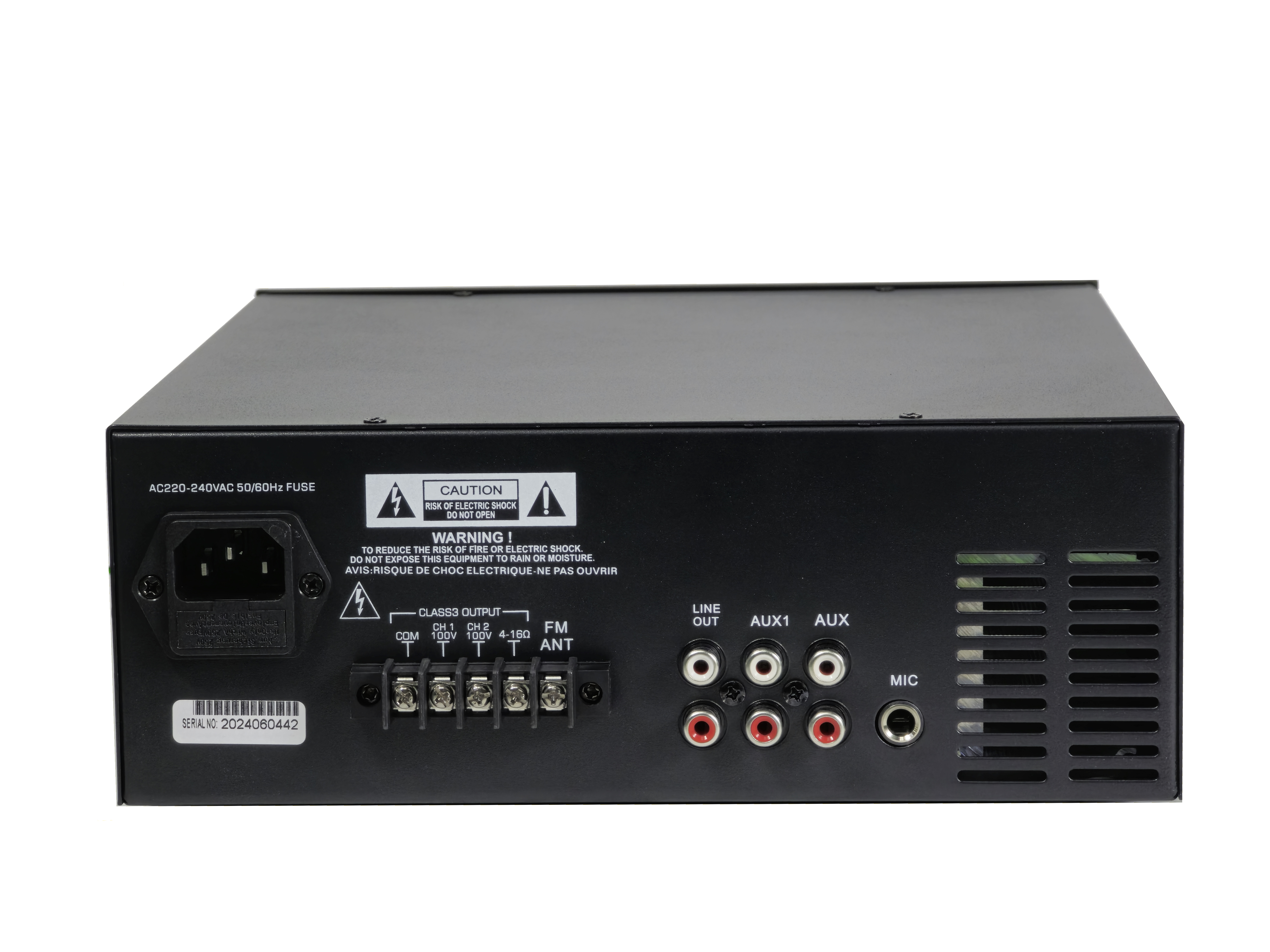

  • Speaker Output:
    Supports both low impedance and 100V line speaker connections, ideal for different types of speaker setups in larger venues or more intimate spaces.

Durability & Design

  • Compact and Portable:
    Its mini size makes it easy to integrate into smaller spaces or carry around for mobile sound systems.
  • Metal Housing:
    Built with a durable metal casing to ensure longevity and to withstand minor bumps and wear.
  • Cooling Features:
    Equipped with ventilation systems to ensure the amplifier doesn’t overheat during extended use.
  • Sleek LCD Display:
    The LCD screen not only provides functionality but also adds to the modern design of the device.

Ideal For

  • Public Address Systems
  • Retail Spaces
  • Home Audio Systems
  • Corporate or Educational Use
Product

100V Line 2 Channel Mini Mixer Amplifier

Product Model

MP120UD

Rated Power

120W

Speaker Output

70V-110V X2
4-16Ω

Frequency Response

20KHz-60Hz <-1dB>

Total Harmonic Distortion

100V OUTPUT <-3dB>0.5%

S/N Ratio

MIC: 66dB
AUX: 80dB

MIC Input

1 (MONO 6.35mm)

AUX Input

2 (RCA)

Bluetooth

Available

USB

Available

Power Supply

AC240V/50Hz

Product Dimension

24cm(L) x 27.5cm(W) x 9cm(H)

Product Weight

6.2Kg

Packing Dimension

36cm(L) x 28.5cm(W) x 16.5cm(H)

Packing Weight

7.2Kg

Master Pack Qty

2pcs
