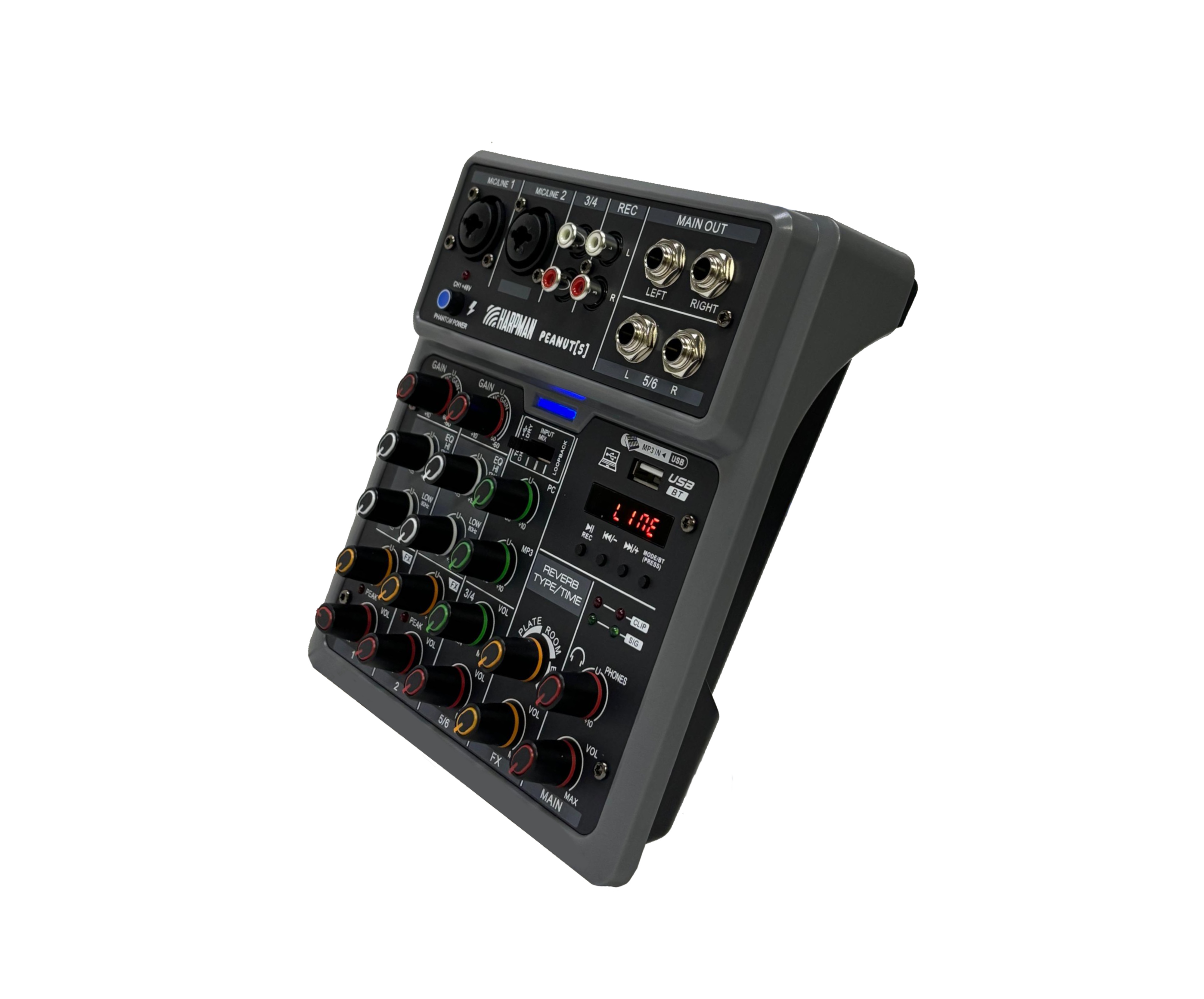

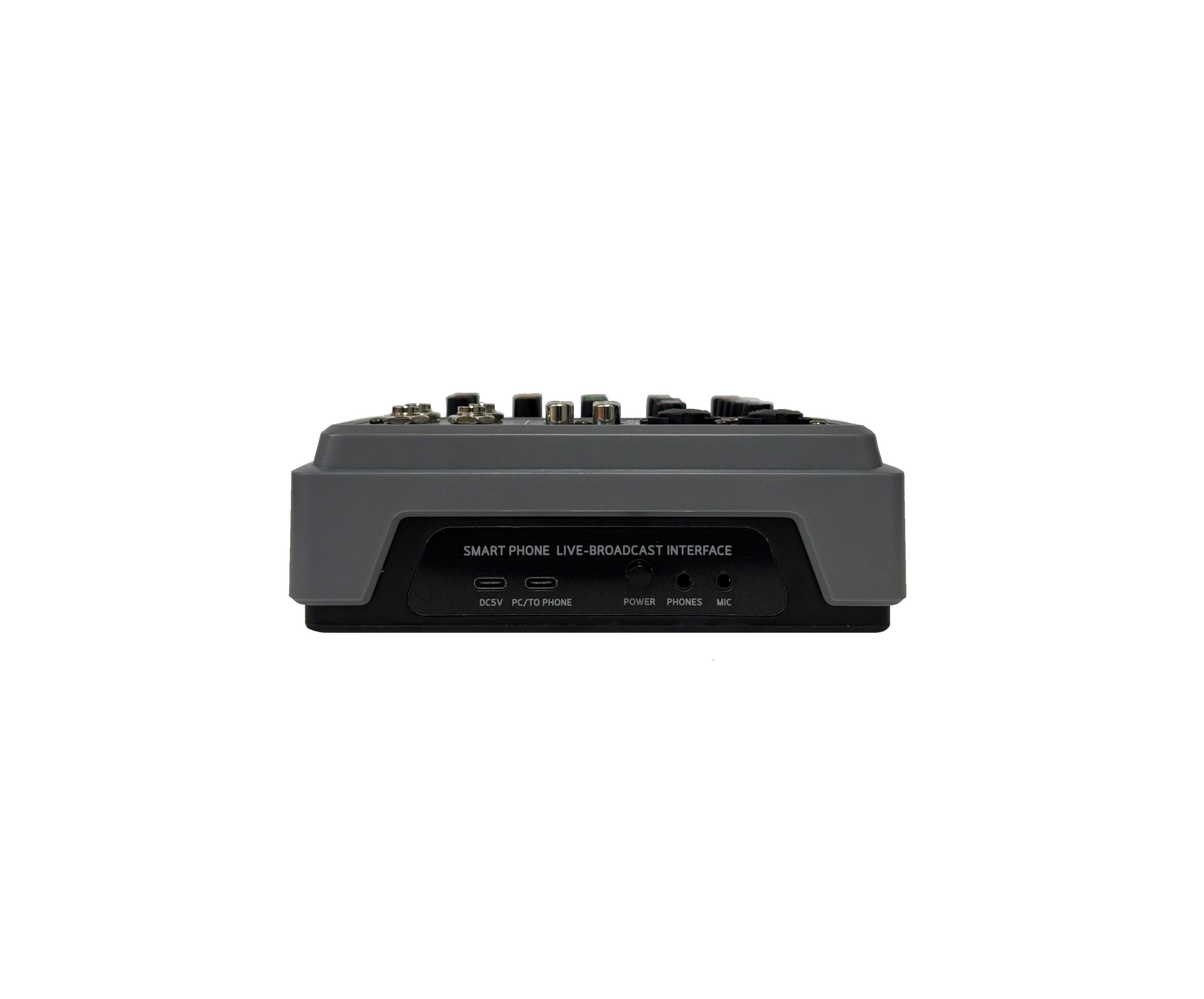

Compact 6-channel OTG mixer for broadcasting with Type-C connectivity, DSP effects and USB recording.
Specifications are subject to change without prior notice.
| Model | PEANUT5 |
|---|---|
| Channels | 6 channels |
| Input Channel Sensitivity | Mic: 30dB |
| Stereo Channel Input | -8dB |
| EFX Send | -20dB |
| EFX Return | -20dB |
| Maximum Output | 4.5V |
| Signal-to-Noise Ratio | -60dB |
| Parametric EQ | High: ±15dB @ 12kHz; Low: ±15dB @ 60kHz |
| Inputs | XLR mono x 2; RCA L/R x 1; 6.35mm mono x 2 |
| Outputs | PC/devices Type-C x 1; phone x 1; mic x 1 |
| Product Dimension | Interface: 17 x 19 x 6cm |
| Product Weight | Interface: 681g |
| Packing Dimension | 22 x 8.5 x 23cm |
| Packing Weight | 1kg |
