RM865.00
Compact 1U Class D power amplifier delivering 400W per channel, with XLR connectivity, NL4FX outputs and link-mode selection.

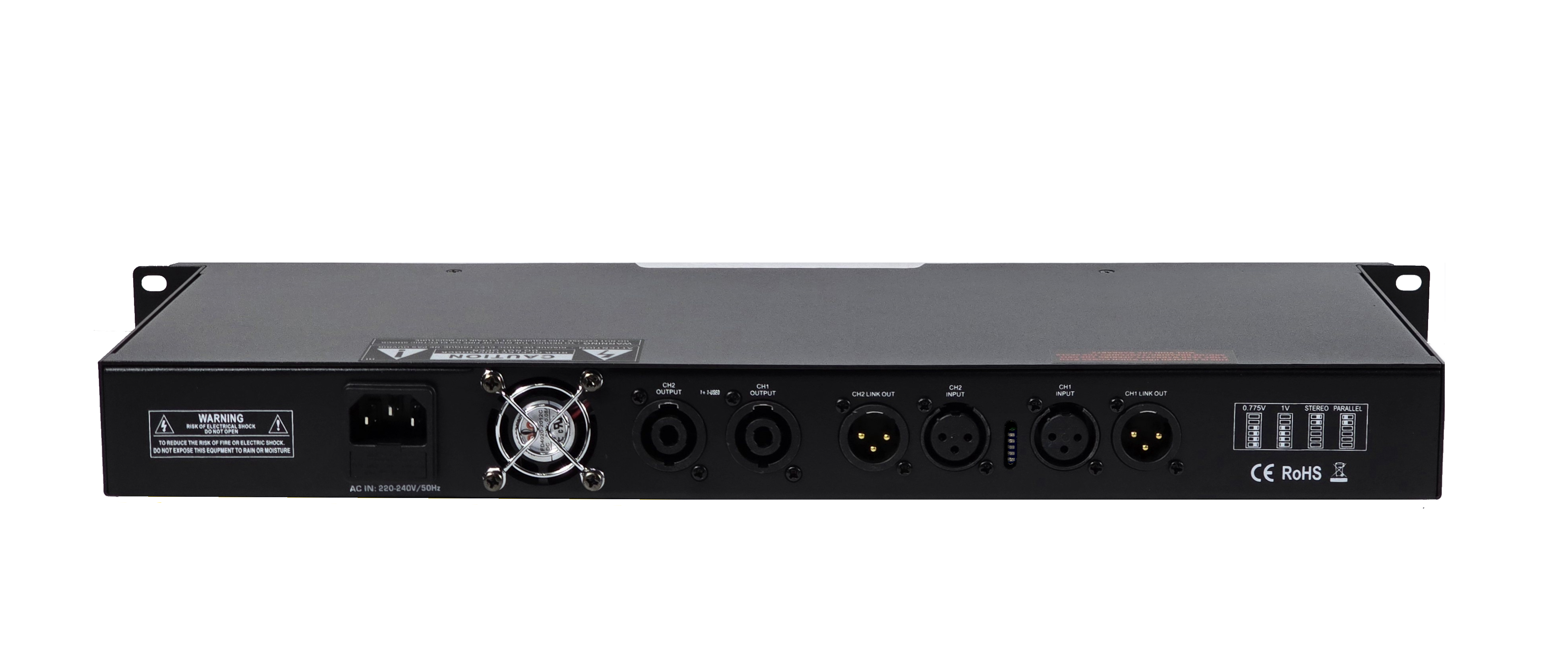

The RAPID800 is a compact two-channel 1U Class D power amplifier delivering 400W per channel for professional sound reinforcement systems.
Specifications are subject to change without prior notice.
| Model | RAPID800 |
|---|---|
| Channels | 2 |
| Rated Power | 2 x 400W |
| Power Supply | AC240V, 50Hz |
| Input Connector | 2 x XLR female |
| Output Connector | 1 x mode selector switch; 2 x XLR male; 2 x NL4FX female |
| Frequency Response | 20Hz-20kHz (±0.3dB) |
| Signal-to-Noise Ratio | ≥95dB |
| THD+N | ≤0.03% @ 8Ω, 1kHz |
| Slew Rate | 40V/μs |
| Damping Factor | ≥500 |
| Crosstalk | ≥70dB @ 8Ω, 1kHz |
| Input Impedance | 10kΩ (balanced) / 20kΩ (unbalanced) |
| Voltage Gain | 38dB (sensitivity at 8Ω) |
| Protection System | Soft start, DC, short circuit, overload, clip limit, overheat, progressive volume |
| Indicators | Protect, Clip, Signal, Active |
| Product Dimension | 48cm (L) x 18cm (W) x 4.5cm (H) |
| Packing Dimension | 50.5cm (L) x 25.5cm (W) x 10cm (H) |
| Product Weight | 3kg |
| Packing Weight | 3.5kg |
| Master Pack Quantity | 5 pieces |
