RAYYAN.4+2 – 4 x 6.5″ + Dual 12″ Active Mini Line Array System

Complete active mini line array system with four 6.5-inch satellite speakers and dual 12-inch subwoofers, including a built-in Class-D amplifier and DSP.

Categories: ,

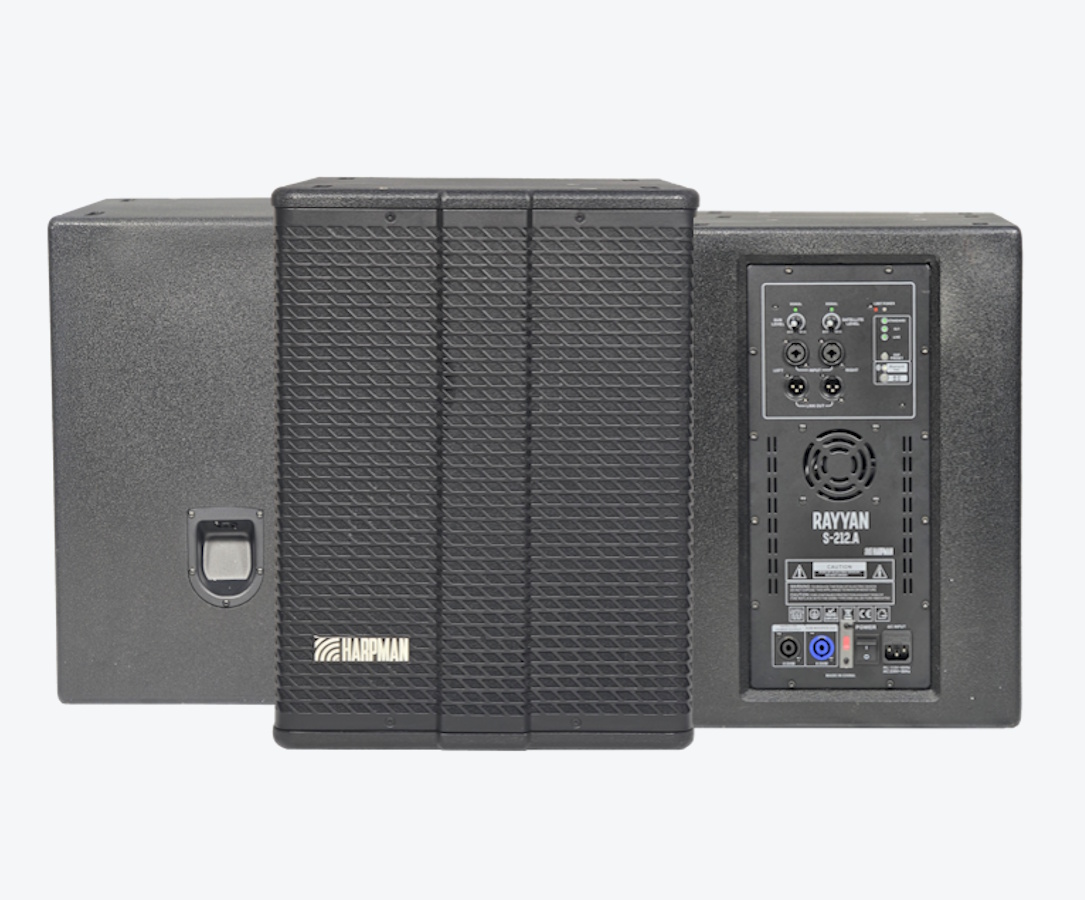

The Harpman RAYYAN.4+2 is a complete active mini line array system designed for live sound and portable PA applications. It combines four 6.5-inch two-way satellite speakers with dual 12-inch bass-reflex subwoofers, including one active subwoofer with a built-in Class-D amplifier.

Features

  • 4 x 6.5-inch two-way passive satellite speaker system
  • Dual 12-inch bass-reflex subwoofers, including one active and one passive unit
  • High-sensitivity system suitable for live sound and portable PA use
  • Titanium 1-inch HF drivers for clear high frequencies
  • Full-range 6.5-inch woofers for mid and high reinforcement
  • Dual 12-inch LF woofers for deep bass
  • 96kHz / 48-bit DSP processor with volume, EQ and phase controls

Specifications

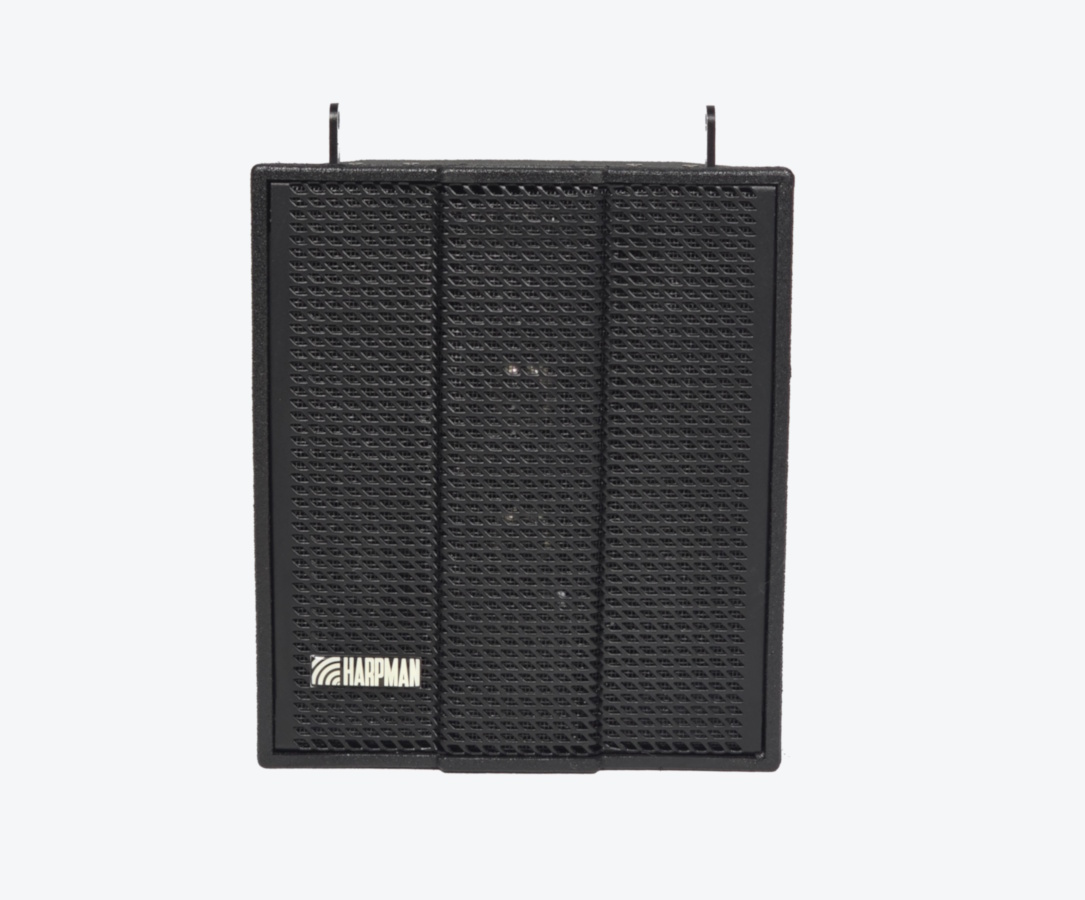

Satellite model: T6 (4 units)
Active subwoofer model: S-212.A (1 unit)
Passive subwoofer model: S-212.P (1 unit)
Frequency response: Satellites 150Hz–18kHz; subwoofers 30Hz–150Hz
Sensitivity: 98dB
RMS power: Satellite 100W each; active subwoofer amplifier 300W + 300W + 2 x 200W; passive subwoofer 300W
Nominal impedance: 8Ω
Satellite LF driver: 1 x 6.5-inch woofer, 1.2-inch voice coil, 22.5oz magnet
Satellite HF driver: 2 x 1-inch titanium neodymium tweeters
Subwoofer LF driver: 12-inch woofer, 2.5-inch voice coil, 52.7oz magnet
Satellite construction: PP and glass-fibre cabinet with sand-painted surface
Subwoofer construction: 15mm plywood with sand-painted finish
Satellite dimensions: 19cm (W) x 22.5cm (L) x 22cm (H) each
Subwoofer dimensions: 62.5cm (W) x 43cm (L) x 57cm (H) each
Product weights: Satellite 4kg each; active subwoofer 19.9kg; passive subwoofer 24.7kg

Specifications are subject to change without prior notice.

Product

4 x 6.5-inch + Dual 12-inch Active Mini Line Array System
Product Model

RAYYAN.4+2
System Components

4 x T6 satellites, 1 x S-212.A active subwoofer, 1 x S-212.P passive subwoofer
Amplifier

Built-in Class-D amplifier in S-212.A active subwoofer
Frequency Response

T6 satellites: 150Hz-18kHz, S-212.A / S-212.P subwoofers: 30Hz-150Hz
System Sensitivity

98dB
RMS Power

T6: 100W each, S-212.A: 300W + 300W + 2 x 200W, S-212.P: 300W
Nominal Impedance

8 ohms
Connection

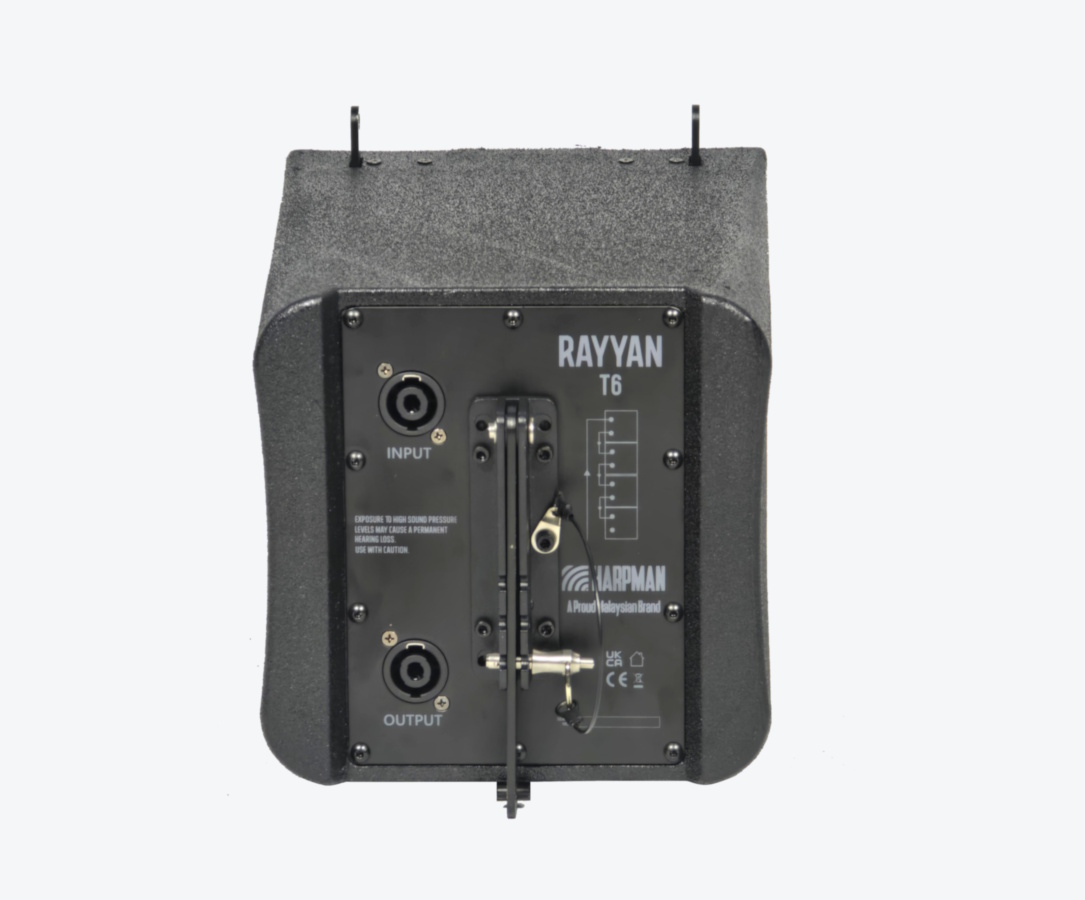

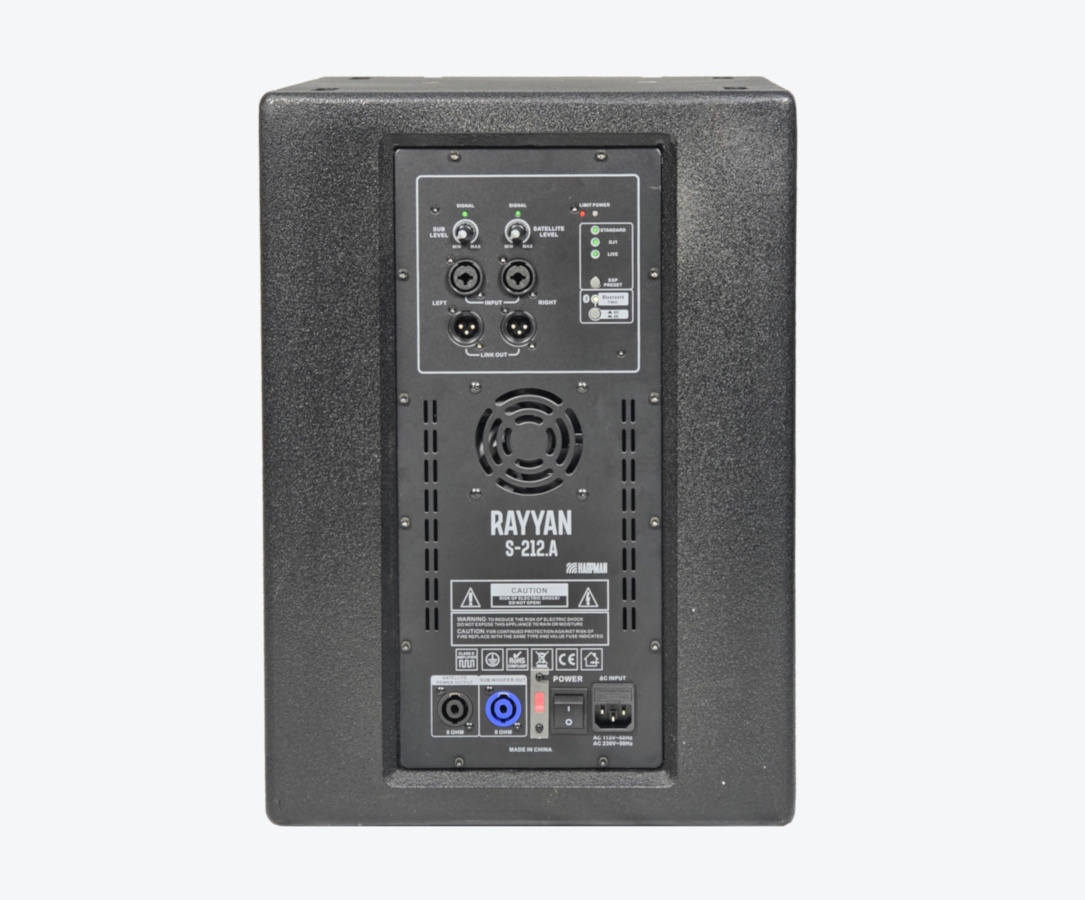

T6: 1 x NL4 input and 1 x NL4 output, S-212.A: 2 x NL4 300W outputs, 2 x XLR female inputs, 2 x XLR male outputs, S-212.P: 1 x NL4 input
LF Driver

T6: 1 x 6.5-inch woofer, 1.2-inch voice coil, 22.5oz magnet, Subwoofer: 12-inch woofer, 2.5-inch voice coil, 52.7oz magnet
HF Driver

T6: 2 x 1-inch titanium neodymium tweeters
DSP

96kHz, 48-bit sampling-frequency DSP processor
Controls

Volume, EQ and phase
Enclosure

T6: PP and glass-fibre cabinet with sand-painted surface, Subwoofers: 15mm plywood with sand-painted finish
Product Dimension

T6: 19cm (W) x 22.5cm (L) x 22cm (H), Subwoofer: 62.5cm (W) x 43cm (L) x 57cm (H)
Packing Dimension

T6: 52.5cm (W) x 57.5cm (L) x 27cm (H), Subwoofer: 64cm (W) x 44cm (L) x 60cm (H)
Product Weight

T6: 4kg each, S-212.A: 19.9kg, S-212.P: 24.7kg
Packing Weight

T6 pack: 19.6kg, S-212.A: 22.3kg, S-212.P: 26.9kg
