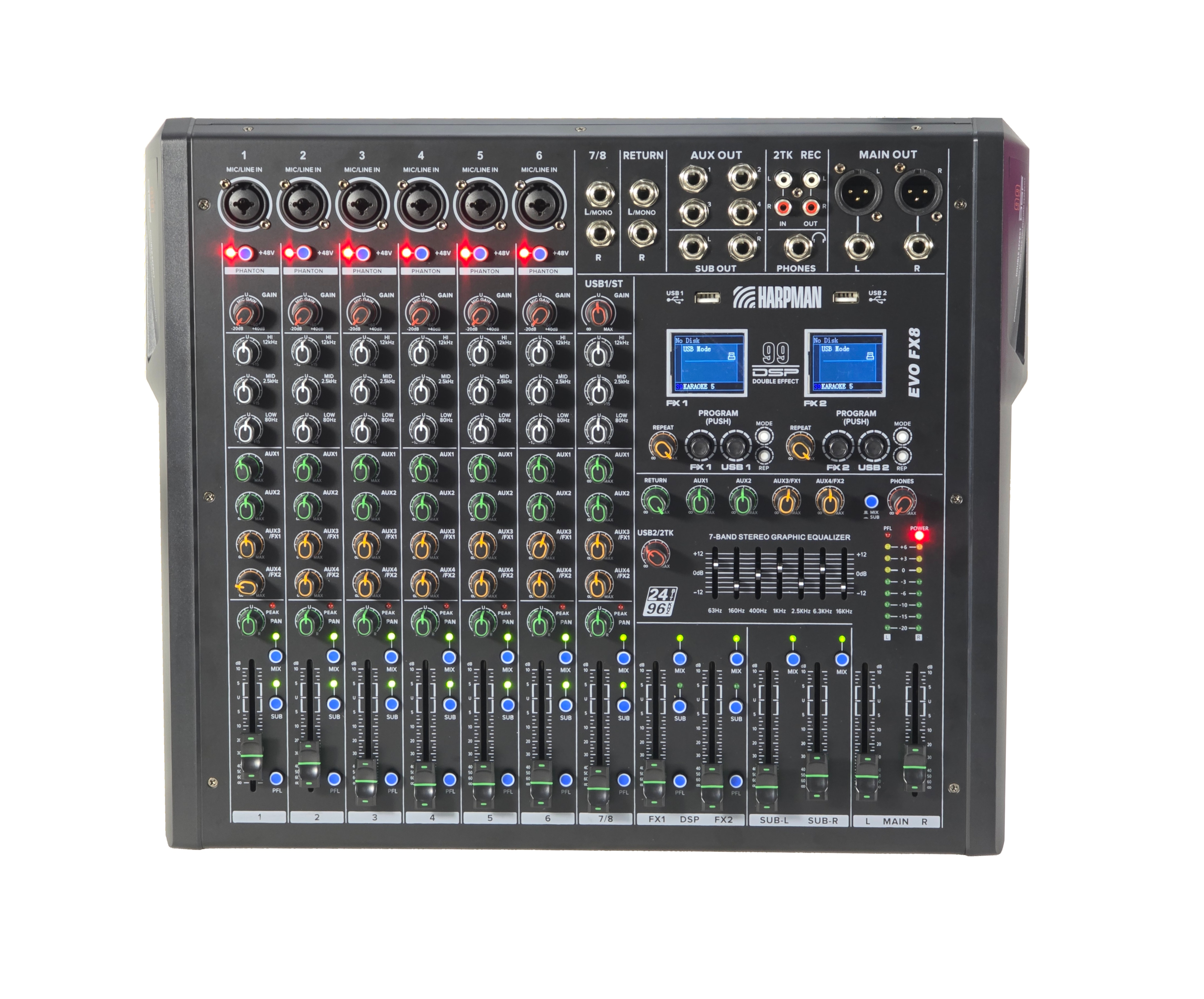

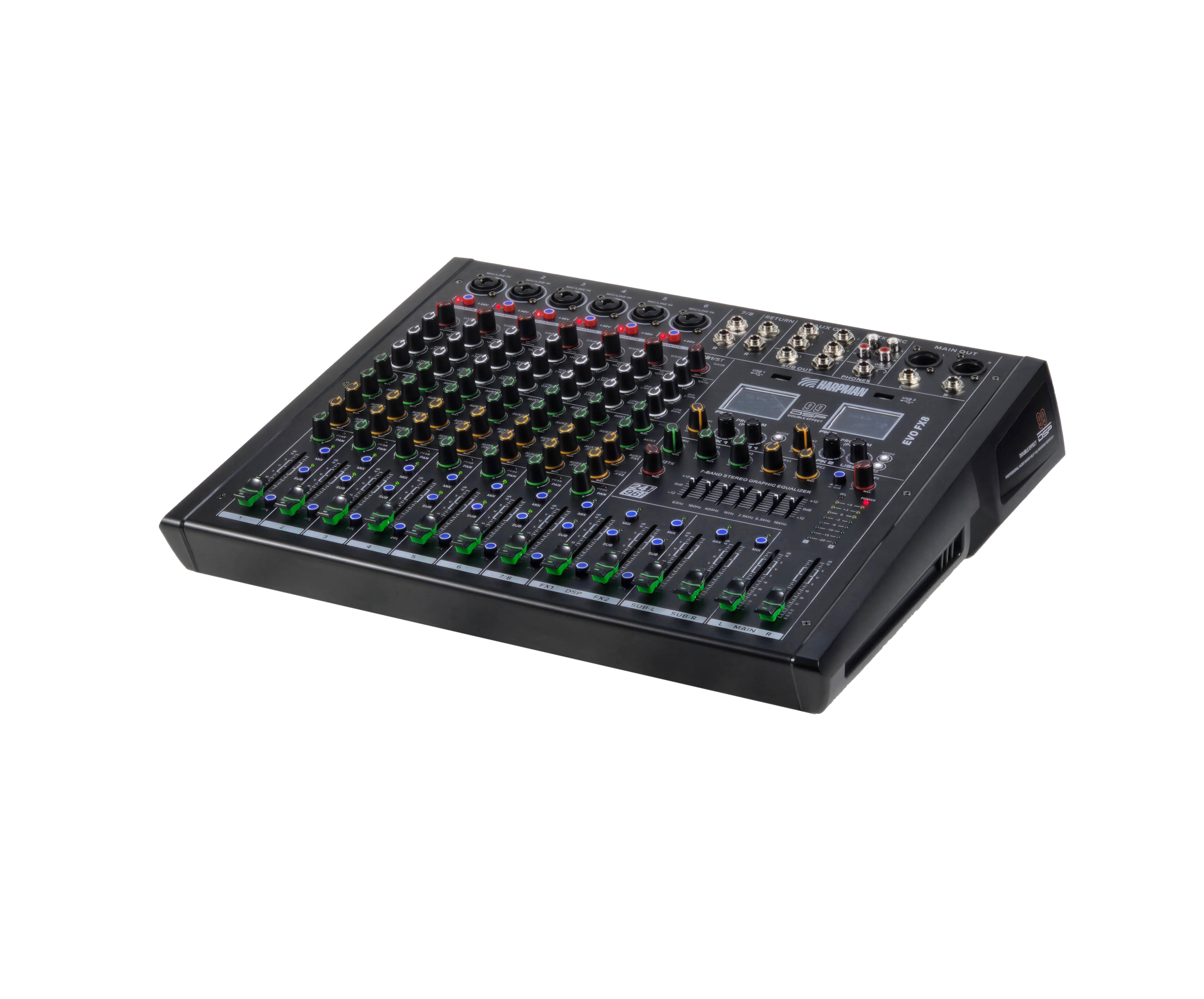

8-channel mixer with dual effects processing, USB audio, MP3 recording and Bluetooth.
Specifications are subject to change without prior notice.
| Model | EVO-FX8 |
|---|---|
| Channels | 8 channels |
| Input Power | AC 100V-250V / 50Hz-60Hz |
| Stereo Graphic Equalizer | 7-band |
| Total Harmonic Distortion | ≤0.07% @ 4dB, 1kHz; bandwidth 80kHz |
| DSP Sound Effect | 99 per processor |
| Frequency Range | 12kHz; 110Hz-8kHz; 80Hz |
| Main Mix Noise | -86dB |
| Crosstalk Attenuation | -82dB |
| Channel EQ | 3-band: High / Mid / Low |
| Inputs | RCA 2-track L/R x 1; balanced XLR/mono x 6; mono 6.35mm x 2; 6.35mm return x 1 |
| Outputs | 6.35mm AUX x 4; phones x 1; sub out L/R x 1; XLR mains L/R x 2; RCA record L/R x 1; 6.35mm main L/R x 2 |
| Product Dimension | 43 x 37.5 x 9.5cm |
| Product Weight | 4.6kg |
| Packing Dimension | 51 x 47.5 x 17cm |
| Packing Weight | 6kg |
